Sheet metal fabrication remains a fundamental aspect of modern manufacturing. The machining technique offers a versatile and efficient method for transforming thin metal sheets into diverse products and components. This process remains fundamental across numerous industries, contributing to the manufacture of industrial machines, architectural structures, and everyday consumer goods.
Therefore, understanding the various methods in sheet metal fabrication can help select the appropriate technique to achieve optimal results in the final product. Continue reading as this comprehensive guide explores the methods used to shape and assemble metal sheets precisely.
What is Sheet Metal Fabrication?
engineer drilling a metal sheet
Sheet metal fabrication involves various industrial processes manipulating flat metal sheets into functional parts and structures. This versatile manufacturing method encompasses cutting, bending, punching, welding, and assembling to manufacture various components.
The most frequently used materials in sheet metal fabrication are aluminum, steel, copper, and brass. Each material is selected for its distinct properties, including strength, weight, corrosion resistance, and conductivity, which make them suitable for specific applications.
The fabrication process begins with selecting the appropriate metal sheet, which is then subjected to various techniques to achieve the desired form. Advanced machinery and tools, such as laser cutters, CNC punch presses, and welding equipment, ensure precision and accuracy throughout manufacturing.
Sheet metal fabrication remains integral to various industries, including automotive, aerospace, construction, and electronics. It enables the production of everything from small components and enclosures to significant structural elements and machinery. The ability to customize designs and fabricate intricate details makes sheet metal fabrication an essential aspect of modern manufacturing.
Common Types of Sheet Metal Fabrication Techniques

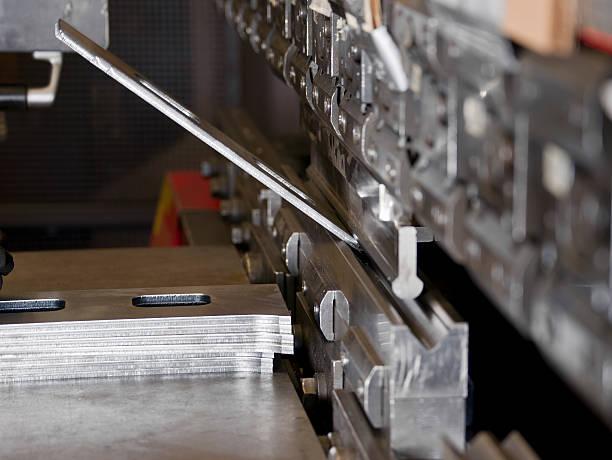

a sheet metal undergoing bending
Sheet metal fabrication comprises various techniques, each tailored to achieve specific results. These methods transform flat metal sheets into complex and functional components across multiple industries.
Below are some of the most common and essential sheet metal fabrication techniques:
Laser Cutting
Laser cutting is an accurate technique using a high-powered laser beam to slice through metal sheets. The process involves directing a laser through optics to focus the beam on the material. As a result, the laser beam melts, burns, or vaporizes the material, creating intricate cuts with minimal waste.
Laser cutting remains especially beneficial for creating complex geometries and tight tolerances in various metals that traditional cutting methods cannot achieve. It is also widely used in industries requiring precision, such as aerospace, automotive, and electronics. Above all, the accuracy and speed of laser cutting make it a popular choice for both prototyping and mass production.
Punching
Punching involves using a punch press to create holes or shapes in metal sheets. In the process, manufacturers use a punch and die set to shear holes in the metal, making it a fast and efficient way to produce multiple holes or cut-out sections in a sheet.
Punching is commonly used in manufacturing metal components like brackets, enclosures, and panels. What’s more, this technique is highly efficient for high-volume manufacturing. This is because the fabrication method provides consistent results and reduces material waste. Modern CNC punching machines can also create various shapes and sizes, enhancing versatility.
Metal Bending
Metal bending is a process in which metal sheets get deformed along a straight axis to create a desired angle or shape. This is usually done using a press brake, which clamps the metal and applies force to bend it. Bending is crucial for manufacturing components like frames, brackets, and enclosures. It also applies across various industries, such as construction, automotive, and aerospace.
The precision of modern press brakes allows for complex bending operations with high repeatability, ensuring each piece is identical. In addition, this technique is critical for creating components that need to fit together precisely in larger assemblies.
Riveting
Riveting is a fabrication method that involves joining two metal sheets together using rivets. A rivet is a metal pin with a head inserted into pre-drilled holes in the sheets and then deformed to hold the sheets together securely. This technique is widely used when welding is not feasible, such as in aircraft assembly and structural steel frameworks.
Riveting provides a permanent joint and is often preferred for its reliability and ease of inspection. It is beneficial in situations where the joined materials may be subject to vibration or movement. This is because riveted joints can accommodate slight shifts without compromising integrity.
Tapping
Tapping typically involves cutting threads into holes in metal sheets to create screw threads. As the name suggests, this is generally done using a tap, a tool designed to cut the threads into the metal. Tapping is essential for creating components that need to be fastened together with screws or bolts.
The precision of tapping ensures that the threads are consistent and can securely hold screws. This makes it a crucial process in manufacturing assemblies where parts must be frequently disassembled and reassembled.
Convexing
Convexing, or bead rolling, involves creating raised or indented designs on a metal surface. This technique is often used to add rigidity to a panel, create decorative features, or produce channels for fluid flow.
As such, convexing is used to fabricate automotive body panels, HVAC systems, and architectural elements. The process enhances the structural integrity of metal sheets without adding significant weight, making it ideal for applications where both strength and aesthetics remain vital.
Threading
Threading is the process of creating a helical ridge on the surface of a metal workpiece. This allows the insertion of screws and bolts. Fabricators carry out threading using various tools, including threading dies or taps. This technique remains crucial for manufacturing components to fit together correctly and can be easily disassembled if necessary. Hence, threading finds application in fabricating fasteners and fittings in machinery.
Counter Sinking
Counter sinking is the process of enlarging the top part of a hole to create a conical shape, allowing flat-headed screws or bolts to sit flush with or below the surface of the metal sheet. This is often done using a countersink drill bit.
Countersinking is essential for applications requiring smooth surfaces, such as electronics, automotive, and aerospace industries. This process improves the aesthetic appeal of the final component and ensures that screws do not snag or protrude. More to the point, snagging or interference could cause issues in tightly fitting assemblies or moving parts.
Laser Welding
Laser welding employs a high-powered laser to join metal pieces by melting and fusing their edges. The laser’s focused heat source enables deep penetration welds with narrow heat-affected zones. This minimizes the potential for thermal damage to surrounding materials.
Laser welding offers precision, speed, and minimal thermal distortion. This technique is especially useful in high-precision industries, such as aerospace, electronics, and medical, where clean and accurate welds remain vital.
TIG Welding
Tungsten Inert Gas (TIG) welding, or Gas Tungsten Arc Welding (GTAW), is a fabrication process using tungsten electrodes to produce a weld. An inert gas, usually argon, shields the weld area from contamination.
TIG welding’s precise control over heat input makes it ideal for fabricating welds on components where appearance and structural integrity are paramount. This method is suitable for thin and delicate metals used in aerospace and automotive industries, as well as art metalwork.
Conclusion
Overall, sheet metal fabrication combines engineering, craftsmanship, and technology principles to transform raw metal sheets into functional, aesthetically pleasing, and durable products. The precise control over material properties and shapes allows manufacturers to meet stringent specifications and deliver high-quality results for various applications.
The common types of sheet metal fabrication techniques discussed in this article include laser cutting, punching, metal bending, and riveting. Each method offers distinct advantages and applications, enhancing its versatility and effectiveness across various industries.
With a strong reputation in the precision parts and prototyping manufacturing industry, Zintilon continues to deliver high-quality solutions to its valued customers. Contact us today to discover more about our sheet metal fabrication services and see how we can help bring your project to life with precision and expertise.
